Electric stove burner not heating: Frigidaire repair in Charlotte

The rear-right cooktop burner would not heat

A Charlotte customer reported that one burner on their Frigidaire electric stove was not heating. It was the small rear-right burner on the glass cooktop.

What we checked and replaced

We checked the burner’s heating element for continuity. Continuity was present: the test found an unbroken electrical path through the element at that time.

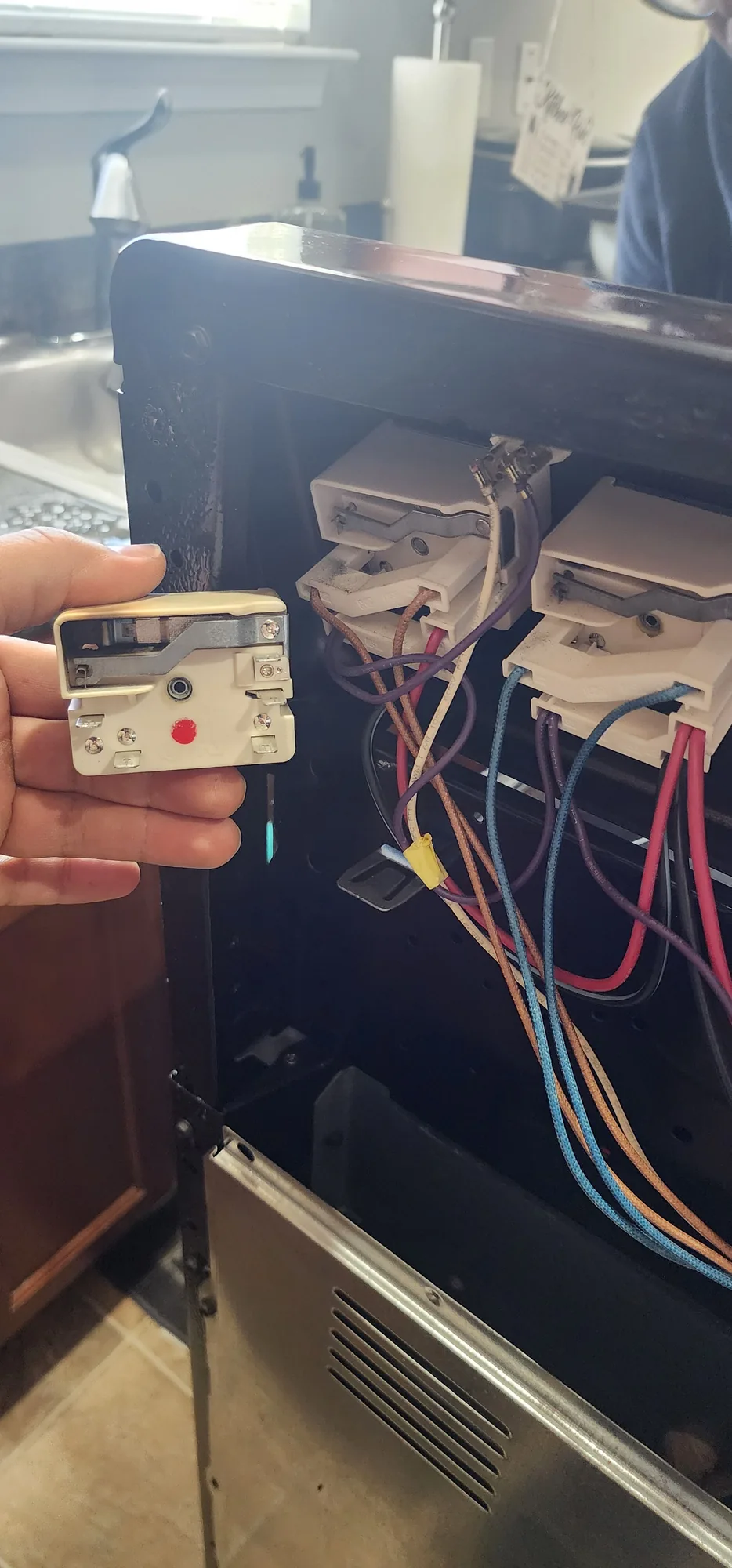

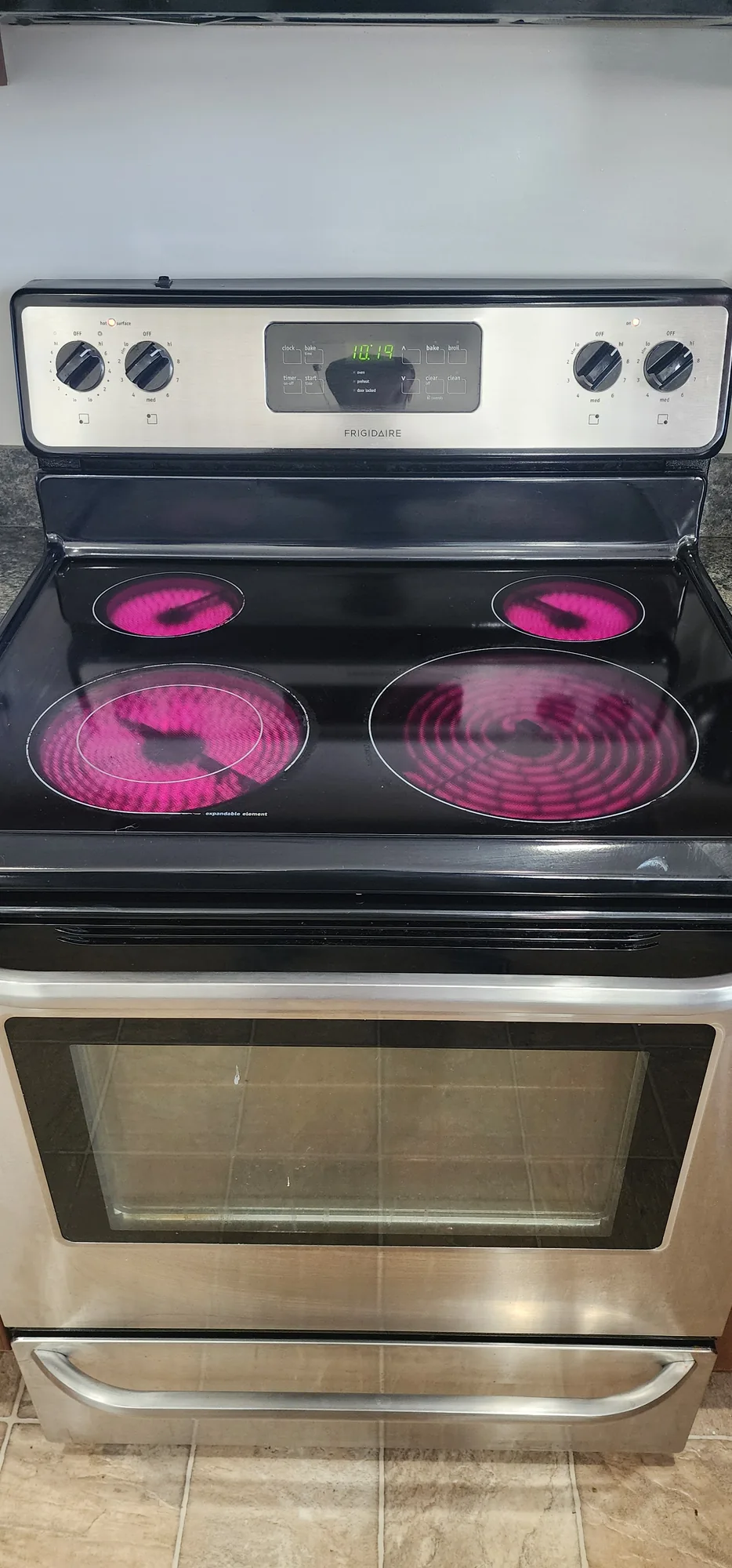

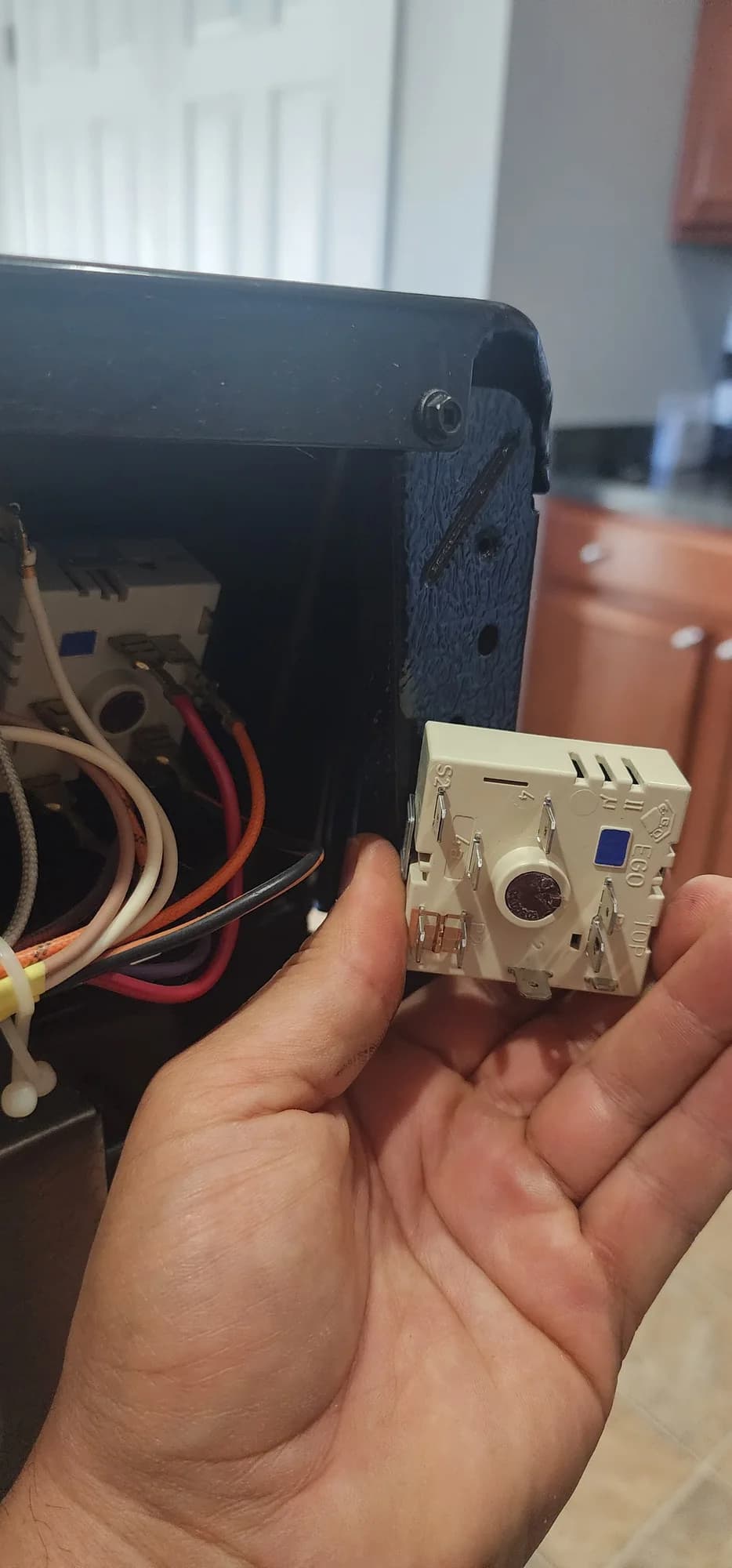

That reading alone does not establish that a control switch has failed or verify every part of the circuit. In this repair, we replaced the burner’s infinite switch. The rear-right burner heated again after the replacement.

What an infinite switch does

An infinite switch controls the power supplied to a surface heating element. On this type of control, the heat setting changes how long power is switched on and off. E.G.O., a manufacturer of these regulators, explains this operating principle in its energy regulator overview.

A burner that does not heat should not automatically be treated as a failed switch. The appliance’s model, wiring and component checks matter when choosing a repair. The model and replacement part number are not available for this case, so these photos should not be used to select a part for another range.

Stove and electric cooktop repair in Charlotte

For stove repair service, tell us the brand, which burner is affected and what happens when you turn its control. Have the model number ready if it is available. For a separate cooking surface, see our electric cooktop repair service.

OK Appliance Repair serves Charlotte and nearby communities. Call (980) 301-6530 or request service. Electrical checks and work inside a range should be handled by a qualified technician.
